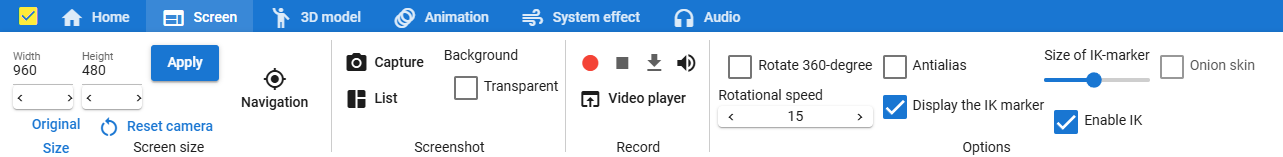

6.13.1.2. Screen tab

There are buttons for screen-related functions.

In the screen size

Screen size:

Specify the width and height of the WebGL screen freely.

Apply:

Reflects the size you entered.

original size:

Resize the WebGL screen back to match the current app size.

reset camera:

Restore the default position of the main camera. (Shortcut: R key)

Navigation:

Displays a small navigation window.

In Screenshot

capture:

Take a screenshot of the current WebGL screen and save it.

List:

Displays a window for displaying and managing screenshots taken.

transparent background:

Makes the background part of the WebGL screen transparent when taking screenshots.

In Record movie

recording:

Start recording the WebGL screen. All operations and animations are recorded until you stop.

Stop:

Stop recording.

download video:

Download the recorded content. The format is webm format.

Enable/mute audio:

Mute or re-enable audio for recorded video.

Video player:

Opens the built-in video player in a separate window.

In Options

360 degree rotation:

Rotate the camera 360 degrees around the currently selected object.

Rotational speed:

Adjust the speed of rotation.

antialiasing:

Applies anti-aliasing to WebGL screens.

Show IK MarkersShow IK Markers:

Switch the display of IK markers when operating each object. It is not linked to the display of IK markers in VR/AR space.

IK marker size:

Change the size of the IK marker. (0.01 to 0.2)

Onion skin:

Enables or disables the onion skin function.
