6.13.1.3. Model tab

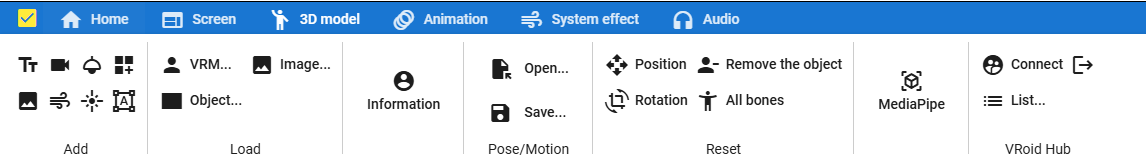

../_images/screen_ribbon_model.png

There are buttons for functions related to 3D models.

In Add (4 rows above, 3 rows below)
Text:

Add text to the WebGL screen.

Camera:

Add a camera to your WebGL screen. This will be the sub camera.

Spotlight:

Add a spotlight to your WebGL screen.

Basic shapes:

Add blank objects such as spheres, planes, and rectangles.

Image in UI:

Add image as 2D to WebGL screen. This is not a 3D object.

Effect:

Add effects to your WebGL screen.

Point light:

Adds a light that illuminates a certain area of space on the WebGL screen.

In Load

The From File, Select from Google Drive and Sample Data menus are available.

From a file:

Read files directly from a PC or other device.

Select from Google Drive:

A separate dialog will be displayed, allowing you to select and load the target file.

Sample data:

You can use the model data provided on this app’s server.

By each object
VRM:

Load the VRoid (VRM) and load it.

Object:

Open and load FBX, OBJ, etc.

Image:

Load the image as a 3D object. After loading, it can be operated in the same way as FBX or Obj.

Detailed information:

Displays information for the selected VRM. Doesn’t work outside VRM.

In the Reset operation
Open:

The previous List has been replaced with this menu.

../_images/screen_ribbon_model_01.png
App pose, App motion

The pose/motion list dialog opens with each tab selected.

VRMAnimation

Open from one of the following.

Terminal, Internal Storage

Save:

Displays the pose save and motion save menu.

../_images/screen_ribbon_model_02.png

There is a submenu for each format. Click on each to select the save location and format.

App pose / App motion

Terminal, Internal Storage, Google Drive

Motion: general format

The general format is .anim.

VRMAnimation

Terminal, Internal Storage

In the Reset operation
reset position:

Resets the position of the selected 3D object to its initial position.

reset rotation:

Resets the rotation of the selected 3D object to its initial angle.

delete model:

Delete the selected 3D object from the app.

reset all bones:

Resets all bones and IK positions and rotations of the whole body of the selected VRM. (return to T pose)

others
MediaPipe:

Use the pose tracking function by AI.

VRoid Hub
Connect:

Start connecting to VRoid Hub. After logging in to VRoid Hub, a connection confirmation page will be displayed.

Log out:

Disconnects this app from VRoid Hub and cancels your login status.

List:

Clicking on one of them will display the model selection screen.

  • My models

  • My favorites

  • Recommended models by staff
