12.7. A few things about timeline display

We will explain the timeline toolbar.

../_images/tl_1.png

Note

The tlprev and tlnext buttons have been removed because they can be replaced with other operations.

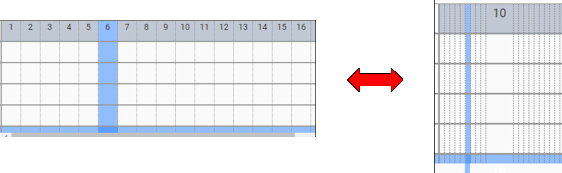

tlout Shrink timeline view

Make the timeline display compact.

tlin Expand timeline view

Resize the timeline display to normal size. This is the standard size.

../_images/tl_7.png

tlplay play from beginning, play/pause, stop

It has the same function as the button on the animation tab of the ribbon bar.

tlload load this frame

Immediately read the contents of the keyframes of all timelines (rolls) corresponding to the currently selected frame position, and restore poses and properties. Selecting a frame position normally restores it automatically, but this button manually calls it.

※設定の フレームを選択する時、プレビューする がオフの場合のみ表示されます。

tlprop 現座のキーフレームのプロパティを開く

Opens the keyframe settings screen for the currently selected timeline.

tladdkey Register to key frame

Registers a keyframe on the currently selected timeline. Unlike the same button on the ribbon bar, this one registers immediately without a registration window.

tldelkey Delete keyframe

Deletes the currently selected timeline keyframe.

tlinsf Insert an empty frame at the current position

Inserts an empty frame into all timelines at the position of the currently selected frame number. This shifts all keyframes after this frame number to the right by one.

tldelf delete current frame position
Deletes the currently selected frame position of all timelines. Since this involves deleting a frame position, not just deleting a keyframe, all keyframes after this frame will be shifted one by one to the left.
Also, please note that if there is a keyframe at the current position, it will be deleted together.
tlshowkey Currently selected frame number

Displays the current frame number.

tlseek Seek Bar

Move the frame position to any position on the timeline. The size of this seek bar does not change even if the number of frames increases or decreases.

If Preview when selecting a frame in the settings is on, you can preview the animation frame by frame by moving it slowly. (some properties are not previewed)

Warning

Due to the interlocking specifications of HTML and WebGL, the preview may not keep up if you move it too quickly.


tlvisi Show/hide timeline cast (object)

You can hide the cast of the selected timeline. IK markers will still be visible when hidden. (If you select another cast, even the IK marker will not be displayed)
