18.2. How to operate on VR/AR

In addition to controllers for VR devices, Meta Quest 3 fully supports hand tracking.

However, what you can do by default with controllers and hand tracking is different.

From ver 2.8.0, mobile terminals are now compatible with VR/AR.

18.2.1. Basic operations

VR/AR operation on mobile terminal

VR and AR can be displayed on mobile devices such as smartphones, but unlike VR devices, there is no controller. Therefore, please note that the following operations have a completely different feel.

grab:

Grab an object and move it. You can move and rotate it like a real thing.

When controlling a VR device:

trigger and grip

During hand tracking:

Pinch the object you want to manipulate with your thumb and index finger

Caution

In the case of Meta Quest 3’s hand tracking, if you turn your palm towards yourself, a systematic operation may be activated. Try to do this with your palm facing the object as much as possible.

Mobile device:

Tap to grab the screen and move your finger up, down, left, right, etc. From version 2.17.0, you can also rotate by tapping two points.

Here’s what you can grab and move:

• IK markers for each part of VRM

• OtherObject (3D model of) itself

• IK markers for OtherObject, Camera, Light, Effect, Image

• IK marker for Directional Light

Main camera movement:

Move the main camera, which is the viewpoint of the VR/AR space. The height and position of the viewpoint may differ slightly from the main camera on the normal screen.

When controlling a VR device:

Moving forward, backward, left and right:

left stick

Move up and down:

Move the right stick forward/backward

During hand tracking:

right hand virtual controller

Set the operation target to main camera and the operation mode to move .

Mobile device:

right hand virtual controller

Set the operation target to main camera and the operation mode to move .

Main camera rotation:

Rotate the main camera, which is the viewpoint of the VR/AR space.

When controlling a VR device:

turn left:

Move the right stick to the left

turn right:

Move the right stick to the right

When using a VR device controller, rotations other than those listed above are not possible as it may cause confusion.

During hand tracking:

right hand virtual controller

Set the operation target to main camera and the operation mode to rotation .

Mobile device:

right hand virtual controller

Set the operation target to main camera and the operation mode to rotation .

Note

• To grab and move the entire VRM, turn on Move Mode from the IK, Whole Body property. You can then grab and move it like any other IK marker. It can also be operated using the virtual controller described later.

• All IK markers are displayed simultaneously in VR/AR space.

• Due to VR/AR specifications, IK markers are not displayed transparently and are hidden behind objects.

18.2.2. virtual controller

Since there are many things that cannot be done with just basic operations, we have prepared a virtual controller that can perform specific functions in VR/AR space.

These are displayed diagonally below the virtual hand. It can be used both when using a VR device controller and when tracking hands.

From ver 2.8.0, we have introduced an equivalent operation panel on mobile devices.

About the functions of each button

Buttons with the same icon can have the same functions in both VR and mobile devices. (Placement may vary slightly)

18.2.2.1. Virtual controller (VR)

It will be displayed on the left and right hand like the actual controller.

By default it is hidden to avoid distractions.

During hand tracking, all fingertips are used as collision detection, and if you overlap your fingertips with the button, the button will sink. For VR device controllers, only the index finger is used when triggering.

yellow cube

When you touch it with the fingertips of your virtual hand, a virtual controller will appear. Only VR devices are displayed.

blue cube

Touch it with the fingertip of your virtual hand to play or pause the animation. Only VR devices are displayed.

virtual hand

When using a VR device controller	During hand tracking

Left hand (left panel, menu panel)	Right hand (right panel/operation panel)

18.2.2.2. Virtual controller (mobile)

It is displayed as a menu panel at the bottom left, bottom right, and top right of the screen.

The width and height are different in portrait and landscape, but they are almost the same. Depending on the operation mode, icons are added to X/Y/Z. (These icons are easy to associate with actual movements.)

Right Panel

Icons displayed for each operation mode on the right panel

Move	Rotate	Scale

Tap to rotate

From version 2.17.0, you can now rotate the IK marker by tapping two points. You can move it as usual by tapping one point.

Header

The avatar name display, which was previously on the left panel, has been moved to the header from version 2.17.0. It displays the name of the currently selected avatar (object) and the currently selected IK marker.

To toggle between showing and hiding, tap the empty area on the left.

Footer

It’s an invisible button at the bottom of the screen. Since you will be using your mobile device’s screen recording and screenshot functions, nothing will actually be displayed in the red frame.

The following functions are available from left to right:

Show/hide left virtual controller

Animation play/pause

Show/hide virtual controller on the right

Properies panel

From version 2.17.0 onwards, the name has been changed because it is now possible to change other properties in addition to selecting VRM bones. The following tabs are available.

• Bone Selection

• Blendshapes (Expressions)

• Palm operation

• Animation Operations

:

When you press this button on the right panel, the following buttons appear:

:

Pressing this button on the right panel will display the properties panel.

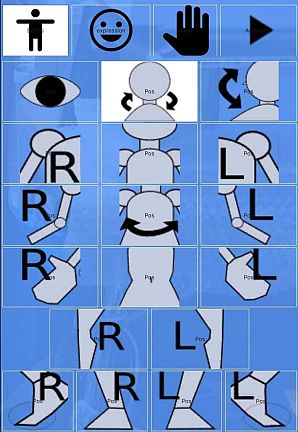

Bone Selection

Switch the operation target to each bone. Tap the button of the bone you want to operate.

See About VRM IK markers for icons and their meanings.

The initial operation mode will differ depending on the part selected.

Head, Chest, Aim, LeftShoulder, RightShoulder

When you select these parts, the manipulation mode will change to Rotate.

Other

The operation mode will be move .

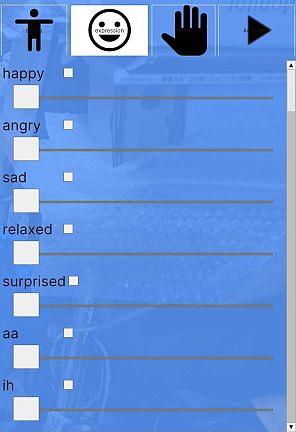

Blendshapes (Expressions)

The VRM blend shapes (expressions) are controlled with sliders. They are used in the same way as the normal HTML screen.

When you move the slider, the checkbox is automatically checked. Only blend shapes with a checkmark will be registered in the keyframe.

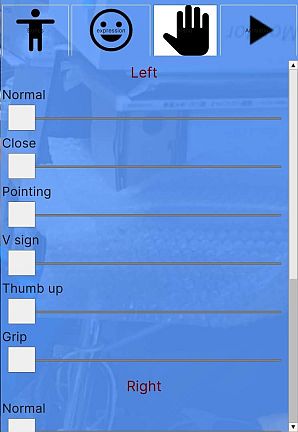

Palm operation

Operate the VRM’s palm. Unlike normal HTML screens, there is no manual operation.

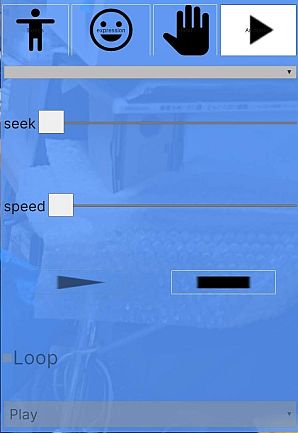

Animation Operations

This controls the playback of built-in animations such as FBX, gltf, and vrma. Only VRM and OtherObject can be used.

VRM	OtherObject

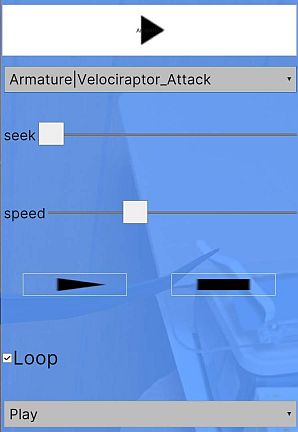

The UI is arranged in the following order from top to bottom:

1. To selecti a motion

2. Change seek position

3. Change an animation speed

4. Play/Stop button

5. Loop Toggle Switch

6. For registering keyframes, animation status

18.2.2.3. left hand virtual controller

UI	Description
Object name	Touch it with the fingertip of your virtual hand to play or pause the animation.
	Select the previous 3D object. If there is a 2D object in the middle, it will be skipped.
	Select the next 3D object. If there is a 2D object in the middle, it will be skipped.
	Switch the display of IK markers. You can grab and operate it even when the display is off. It is not linked to the ON/OFF of the IK marker on the normal screen.
Numbers displayed to the left of the center row	The currently selected keyframe number.
	Return to the previous keyframe. This is almost the same as keyframe operations in the timeline panel.
	Return to next keyframe. This is almost the same as keyframe operations in the timeline panel.
	Registers the pose of the currently selected 3D object to the currently selected keyframe. Selected here is only valid in VR/AR space. This is different from the selection on the normal screen.
	Play the animation.
	Stop the animation.
	Exit the VR/AR screen. (VR devices only)
	(OtherObject only) Set the shader of all materials of the object to Cutout to make them transparent. See below for details. (texture Cutout )
	Switches the axis reference of the operating mode to G - Global Coordinates or L - Local Coordinates .

18.2.2.4. right hand virtual controller

UI	Description
	Operate based on the X axis.
	Operate based on the Y axis.
	Operate based on the Z axis.
	Set the operation target to main camera .
	Sets the operation target to the currently selected 3D object.
	Set the operation target to each bone in VRM and display the property panel (mobile devices only).
	Set the operation mode to Move .
	Set the operation mode to rotate .
	Set the operation mode to size .
	Resets the position, rotation, or size depending on the current manipulation mode.
	Return the VRM to the T-pose (return all IK markers to their initial positions).

Note

For operations other than those listed above, return to the normal screen.

18.2.3. Summary of operations

	Meta Quest 3		PICO4	Mobile device
functions	Controller	hand tracking	Controller
grab	trigger or grip	index finger + thumb	trigger or grip	tap the screen
Move main camera	Left stick + right stick front and back	right hand virtual controller	Left stick + right stick front and back	right hand virtual controller
Rotate main camera	right stick left and right	right hand virtual controller	right stick left and right	right hand virtual controller
Moving/rotating VRM	virtual controller	virtual controller	virtual controller	right hand virtual controller
IK markers for each part of VRM	grab	grab	grab	right hand virtual controller
Moving/rotating other than VRM	grab	grab	grab	Grasp or right hand virtual controller

If there is a misalignment between the main camera of this app and the camera (viewpoint) of the VR device, please operate each VR device to return the viewpoint to the center.

Warning

In the PICO4 browser app, controllers B and Y seem to have the function assigned to the browser’s back button. Therefore, if you press it by mistake, carefully read the confirmation message before proceeding.

18.2.4. Convenient operation functions

18.2.4.1. V-pad in VR/AR environment

In VR equipment, the controller is equivalent to the mouse. However, unlike a mouse, it is not suitable for detailed work. This app provides a function called V-pad so that you can operate it to some extent even in environments where you cannot use a mouse.

You can also use it on VR devices to operate the regular screen.

This V-pad allows you to move and rotate the main camera by swiping inside each square. The operating feel of VR devices varies slightly depending on the product.

Meta Quest 3

• You can operate by holding down the trigger and moving the controller inside the square inside the V-pad.

• You can rotate the main camera by holding the triggers on both controllers and focusing on the WebGL screen.

PICO4

• You can operate by holding down the trigger and moving the controller inside the square inside the V-pad.

• You can operate it by simply moving the stick within the squares on the V-pad. This is the most recommended method of operation.

Hint

The reaction rate may be too fast. In that case, please adjust the movement speed and rotation speed of the V-pad from Application in the settings.

18.2.4.2. Object transformation

Use the virtual controller on your right hand to move, rotate, and resize the selected object.

You can move and rotate by grabbing directly with the VR device’s controller or hand tracking, but if you want to make fine adjustments, it’s better to use a virtual controller.

Hint

• For any of the operations below, please adjust the VR/AR movement speed and rotation speed in the Applications tab of the settings.

• The reference is the local axis. Press the button on the left panel to switch.

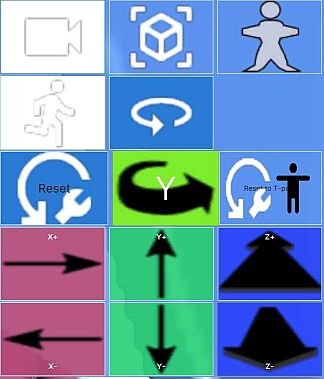

Positioning mode

1. Press to switch to move mode.

2. Press one of the following to move along that axis.

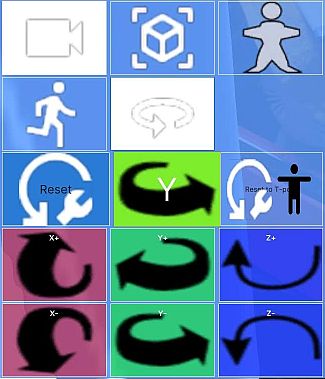

Rotation mode

1. Press to switch to rotation mode.

2. Press the button shown above to rotate.

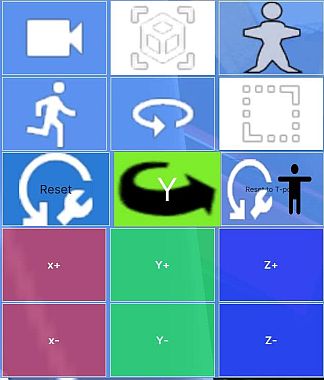

resize mode

1. Press to switch to resize mode.

2. Press the button shown above to change the size.

Reset changes

The state will be reset according to the current operation mode. Press the following button:

Tap to move and rotate

Starting with version 2.17.0, we have improved the operability of tapping, allowing you to rotate as well as move.

One-point tap:

Moving IK markers

You can move it by tapping and dragging the screen, but you can also move the IK marker by actually holding the smartphone and moving yourself. This will probably give you a feeling that is closer to operating it on a VR device.

The depth movement on the Z axis is also reproduced exactly as you move while holding the smartphone.

Two-point tap:

Rotating IK markers

The key to operation is to position the IK marker you want to operate between two fingers. When you rotate your two fingers in this state, the IK marker will rotate along the current rotation axis, and the object will actually rotate.

Hint

As a supplementary function, we have provided a button on the right panel to switch the rotation axis.

Rotation axis switching button

X-Axis	Y-Axis	Z-Axis

Tapping the button will switch between X, Y and Z. The rotation axis is also saved for each IK marker.
